Special Door Systems

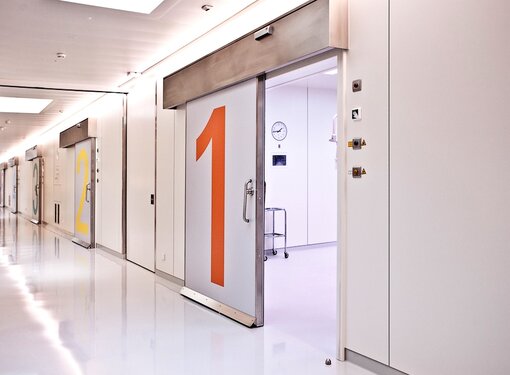

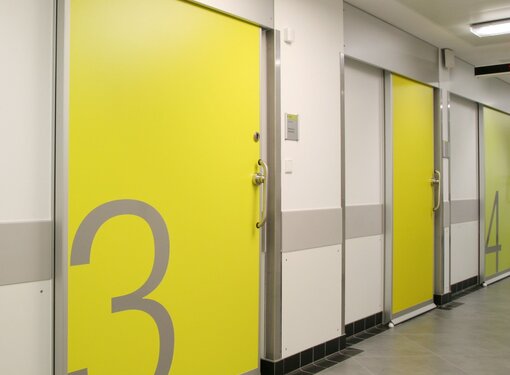

The basic models in the record CLEAN series are the K1, a single leaf sliding door, and K2, with two leaves. A large range of materials are available for the door leaf core and surface finishes, as well as the design of the door frames and sealing system, enabling a wide field of applications.
Fire protection sliding door (fire protection closure – FSC) with certification according to DIN 4102, EN 1634, Belgian special standard and smoke protection testing according to DIN 18095 for structural work entrances up to W x H 1 510 x 2 135 mm in light weight drywalls according to DIN 4102, pt. 4
record THERMCORD is an automatic door system that has thermally separated door profiles with heat insulating properties. The ift Rosenheim determined an achievable heat transmission coefficient (UD) of 1.1 W / m² K featuring approved insulating glazing. THERMCORD is employed as an inside or outside door in areas with a – even temporarily – high temperature differential.

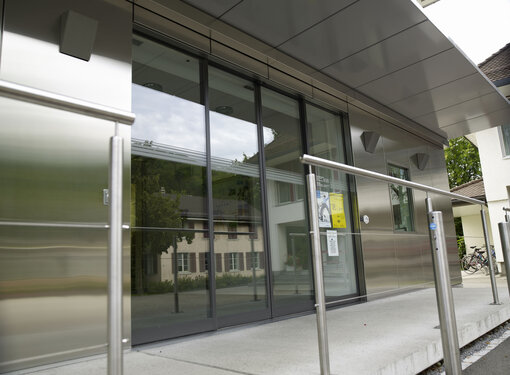

The record SAFECORD RC 2 is designed for users who have above-average burglary protection requirements, but appreciate the convenient operation of a standard automatic door.
With normal sliding doors, fixed side panels block up to two thirds of the passageway. With the record TOS total opening system, however, this area remains fully accessible. The TOS is not only suitable for emergency situations, but also ideal for loading bulky items. Most common applications of the record TOS are in vehicle salesrooms, shopping centers, department stores, furniture outlets, and buildings with high volumes of pedestrian traffic.

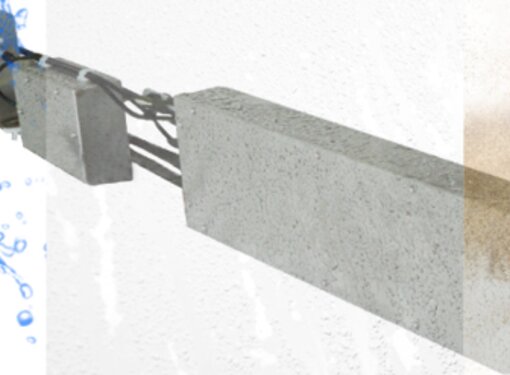

record PROTECT IP65 is a sliding door system with IP65 encapsulated modules, in which the operator, lock, battery and expansion module are housed in sealed stainless steel enclosures made of 1.4404 (AISI 316L) stainless steel, which offer unique resistance to water, moisture and dust. Works reliably – always independent of environmental conditions such as near the sea, on ships, in swimming pools or near the tropics. The well-known record System 20 door system is extended to include the IP65 protection class variant in accordance with DIN EN 60529 (IEC60529/VDE 047).
