Set record 20-200 with brake – record door operator for heavy sliding doors

The drive unit set record 20-200 is particularly suitable for special entrances and applications using heavy door leaves. It can be used in- or outdoor. The drive unit can be fitted to the lintel, free standing or integrated in the ceiling.

Note: No door leave, casing or sensor.

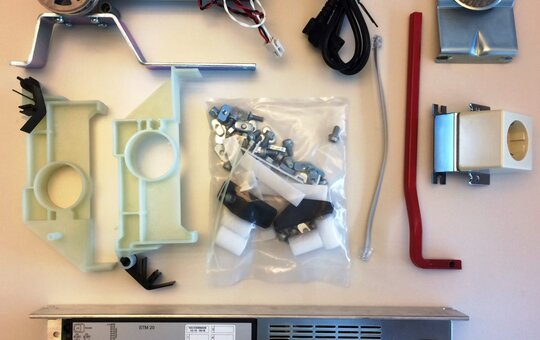

Drive unit set record 20-200 with brake 102-020401377

1 x 200 kg or 2 x 120 kg max. door leaf weight
1 drive unit ATE 20/200 with brake
1 control module STM 20
1 mains cable assembled 1.2 m
1 pulley
1 MS to drive unit set 200 (incl. fasteners)
+ configuration sheets and wiring diagrams
