Hermetic Doors

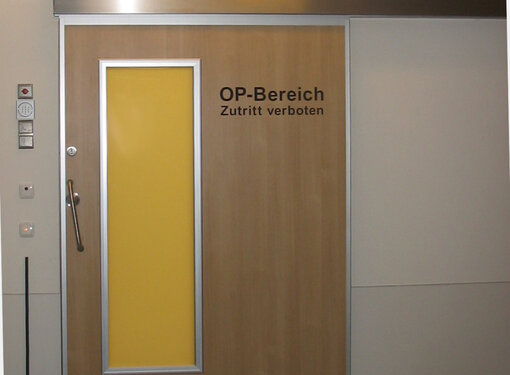

record CLEAN refers to a series of models that are fitted when requirements call for automatic doors with hermetic seals and clearly defined specifications. In the medical field, this is often the case in operating theatres, where our doors help maintain the sterile environment by both their ability to close hermetically and their easy-to-clean properties. These tightly sealing sliding doors are available in single or dual versions.

The basic models in the record CLEAN series are the K1, a single leaf sliding door, and K2, with two leaves. A large range of materials are available for the door leaf core and surface finishes, as well as the design of the door frames and sealing system, enabling a wide field of applications.

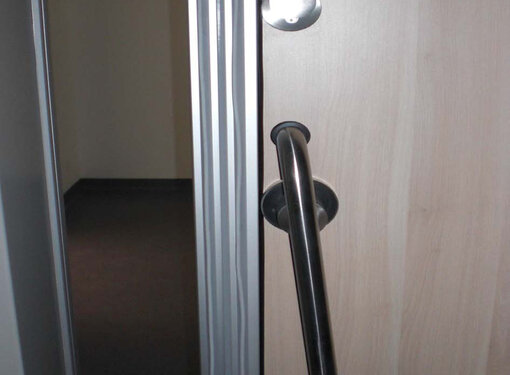

The door core of our record CLEAN K1-A -dB is noise-absorbent and surrounded by rubber seals. Available in sound-proofing stages of 34 dB, 37 dB and 42 dB. The surface can be designed with high-grade steel or freely designable HPL. A combination of the materials is also possible.

With full area lead lining in the door leaf, the inside of the frame sections and the frame, comprehensive protection against electron, X-ray or gamma radiation is provided. The lead equivalents of our radiation protection doors can be selected freely in 0.5 mm steps.

Fire protection sliding door (fire protection closure – FSC) with certification according to DIN 4102, EN 1634, Belgian special standard and smoke protection testing according to DIN 18095 for structural work entrances up to W x H 1 510 x 2 135 mm in light weight drywalls according to DIN 4102, pt. 4

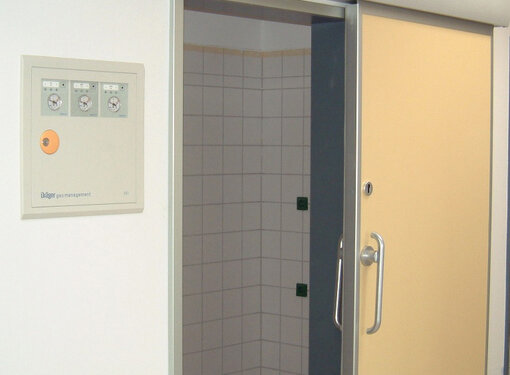

The K system moist room door is based upon the one-winged (K1) and two-winged (K2) door models, respectively the corresponding automated doors.
