Set record STA 20 DUO/RED with brake – record door operator for medium-heavy sliding doors

Set record STA 20 DUO/RED with brake Varianti Accessori Dati tecnici Documenti

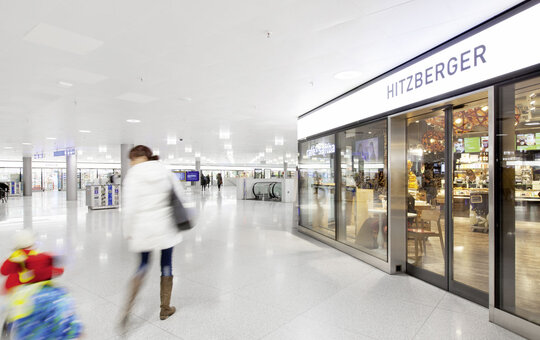

The drive unit set record STA 20 DUO/RED is particularly suitable for special entrances and applications using medium-heavy door leaves. It can be used in- or outdoor. The drive unit can be fitted to the lintel, free standing or integrated in the ceiling.

A rechargeable battery to ensure emergency operation (emergency opening) is not included in this set.

Note: No door leave, casing or sensor.

Set record STA 20 DUO/RED with brake – record door operator for medium-heavy sliding doors
Set record STA 20 DUO/RED with brake – record door operator for medium-heavy sliding doors Set record STA 20 DUO/RED with brake – record door operator for medium-heavy sliding doors

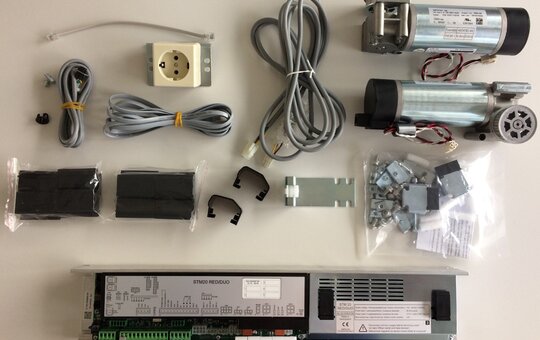

Drive unit set record STA 20 DUO/RED with brake 102-020401375

1 x 150 kg or 2 x 150 kg max. door leaf weight

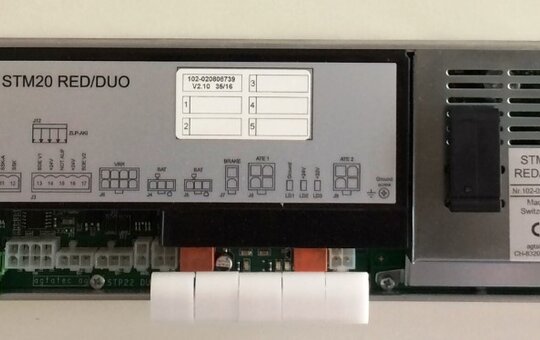

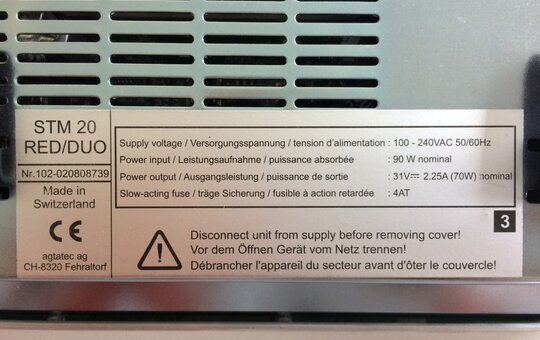

1 STM 20 drive module (incl. power supply)
2 ATE 20 (1 ATE with brake)
1 SIP cable + 1 SIP cable L3000
1 complete socket
1 MS FPC connection
1 MOT2 extension cable
8 cable holders 50 mm P1551
2 cable clips for motor
1 belt guide
+ fastener, + configuration sheets
Note: order separately power cable
