Case Studies – The Star, Sydney

As part of the redevelopment of The Star in 2011, a new hotel and retail complex was built on a adjacent vacant site.

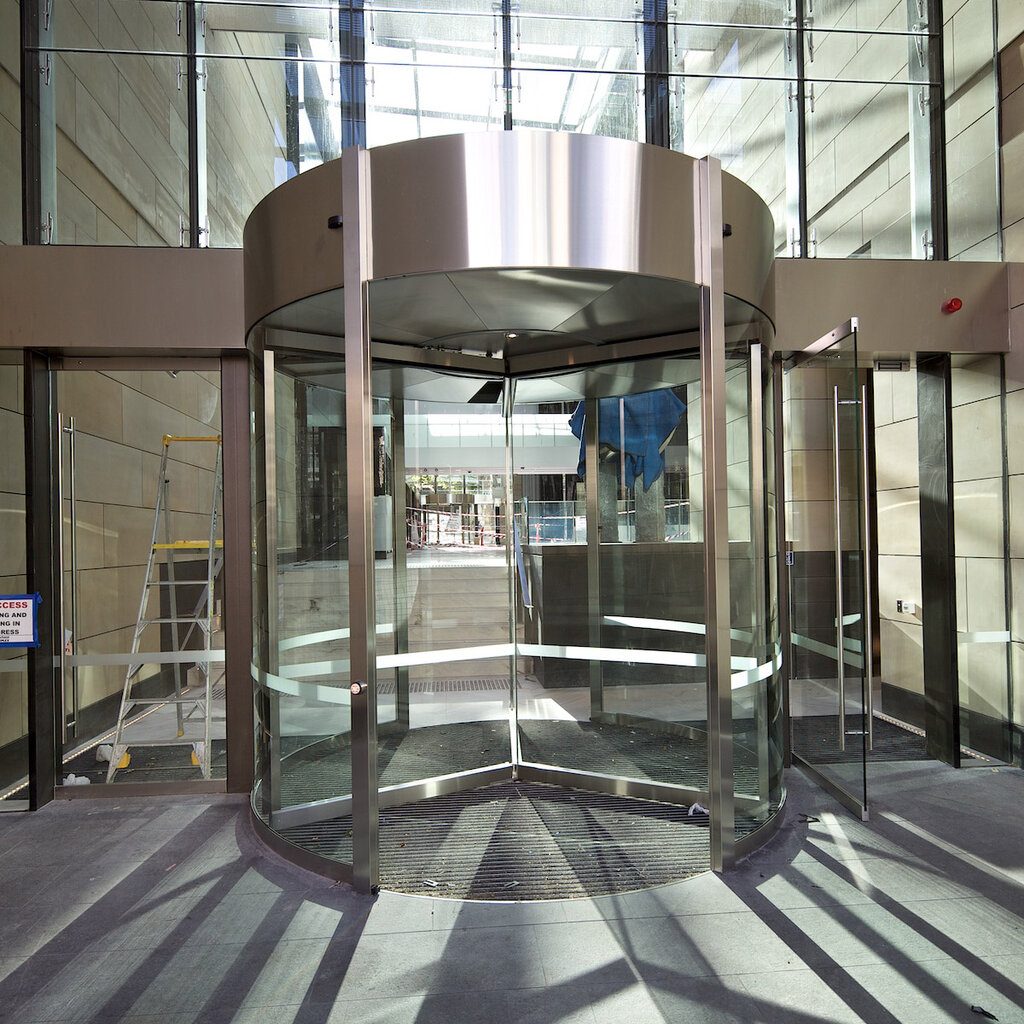

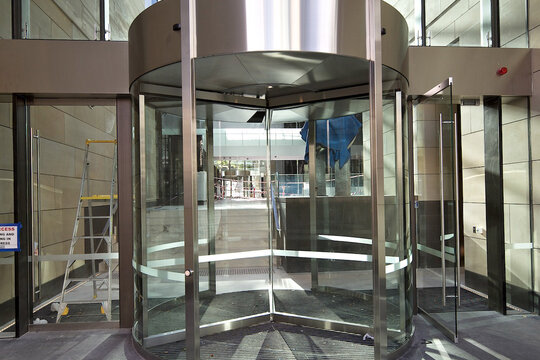

At both entries to the hotel a record Fullview Series 3600mm diameter revolving door was installed to provide the building with an airlocked entry system. These doors are 3650mm high with a 650mm canopy, clad in linished stainless steel, that continues above the frameless glass swing doors on either side. These swing doors have record DFA 127 automatic swing door operators, concealed within the portal, to provide disabled access at the push of a button.

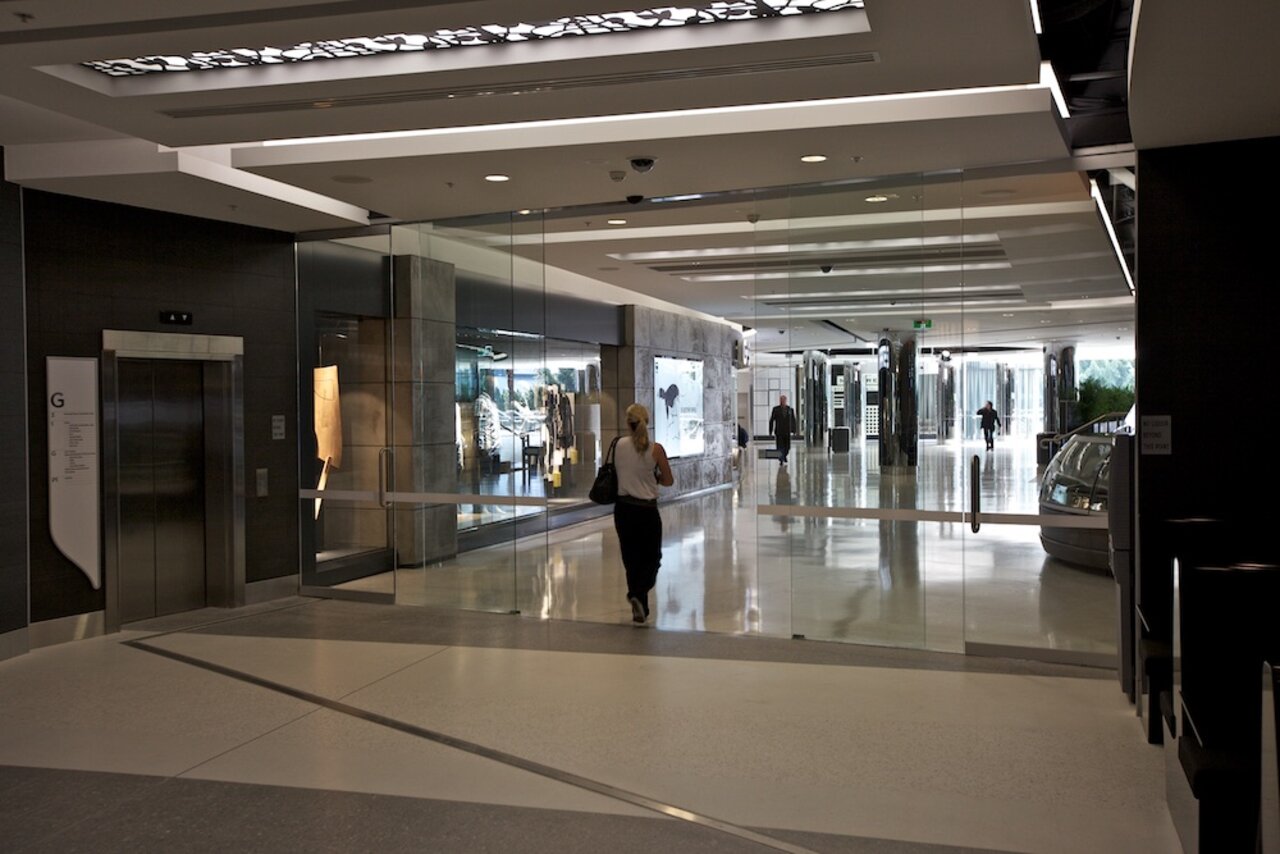

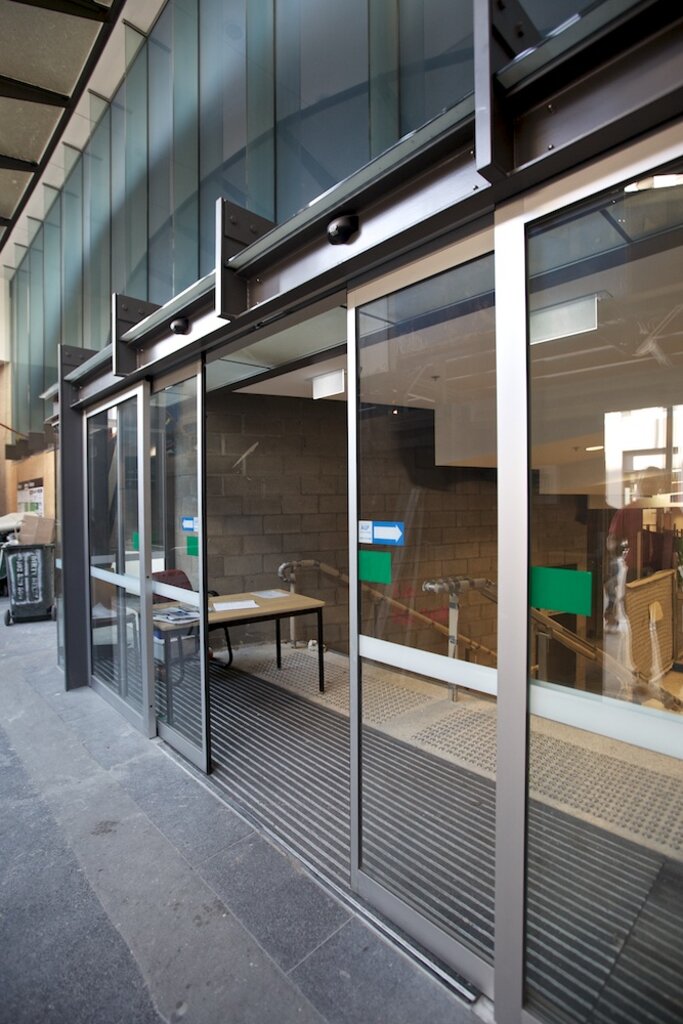

To the 4 off main entries to the new retail area at The Star, record supplied and installed automatic bi-parting doors, with frameless glass door wings. For the Jones Bay Road entry, a breakout sliding door was installed, with the glass sidewalls able to be broken out in an emergency to provide a greater clear opening.

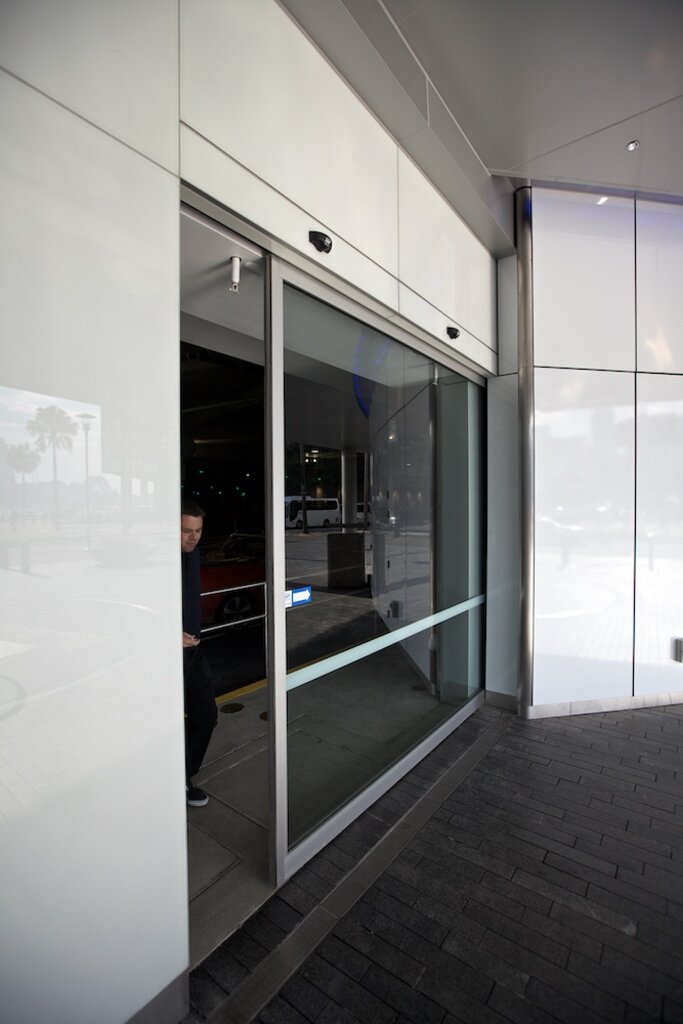

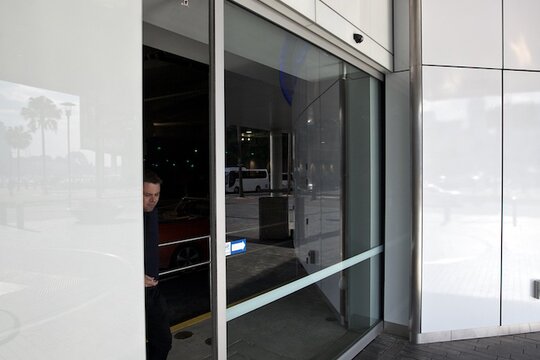

On the ground floor on Pirrama Road, record also installed two large single
sliding automatic doors to the transport interchange. These door wings are aluminium framed in a white powdercoat finish to match the surrounding alucobond cladding.

https://www.star.com.au/

PDF | note | share
The following record products are installed on this project
